Replacement adapter 18.5V 4.9A AC Adapter

FOB Reference Price:Get Latest Price
$5.33 - $6.00 / Pieces | 1000 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Pengchu
Model Number:
PC-185049
Output Type:
DC
Connection:
Desktop
Output power:
90W
Output::
18.5V
Input rated current:
4.9A
Connector size:
prolate head
efficiency:
>85%
AC input:
100-240V 50-60hz
warranty:
2 years warranty
over current protection:
YES
certification:
CE,FCC,RoHS
Over voltage protection:
YES
Supply Ability
Supply Ability:
150000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Brown box
Port
Shenzhen

Replacement adapter 18.5V 4.9A AC Adapter



Product Description
Specification:
  •   AC Input: AC100-204V  50/60hz
  •   DC Output: DC 18.5V 4.9A
  •   Efficiency>85 %
  •   Warranty: 2 years
  •   Certificates: CE, RoHS, FCC, etc.
  •   Customized service: OEM & ODM
  •   Protection: Over current protection,Over voltage protection, Short circuit protection,Over temperature protection
Product Parameter:


Material

ABS+PC

Color

Black

Input Characteristics

Input

100Vac to 240Vac,50/60Hz

Power Efficiency

 85% Min. measured at 240Vac input voltage,

 maximum load and include the DC cable loss

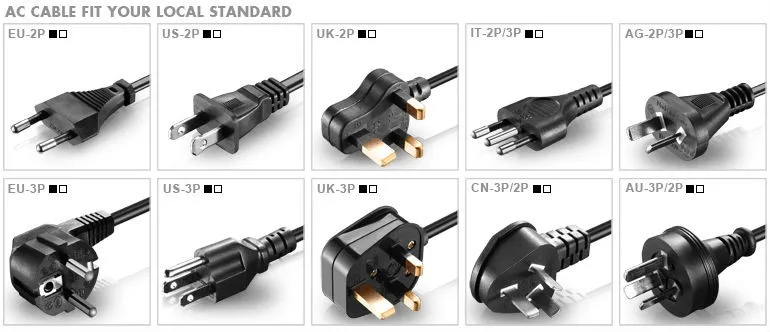

AC Cable

120-150cm   US EU UK AU plug optional

Output Characteristics

Rated Voltage

18.5V

Rated Power

90W

Current

4.9A

DC Tip Size

5.5*2.5mm; 7.4*5.0mm

Prong

2 Prong or 3 Prong

DC Cable

120-150cm

Certificates

CE, ROHS,FCC

Aging test

100% full-load aging test

Environment

Operating Temperature

 -20 to 65

Operating Humidity

10 to 90%RH

Storage Temperature

 -20 to 80

Storage Humidity

5% ~ 95% RH

Protection

Over Load Protection

Short Circuit Protection

Over Voltage Protection (120% min)

Over Current Protection (120% min)

Over Temperature Protection



  Applications:
  • Laptops
  • LED lights, LCD monitor
  • Audio power Amplifier
  • CCTV monitor
  • Game machine
  • Communication products

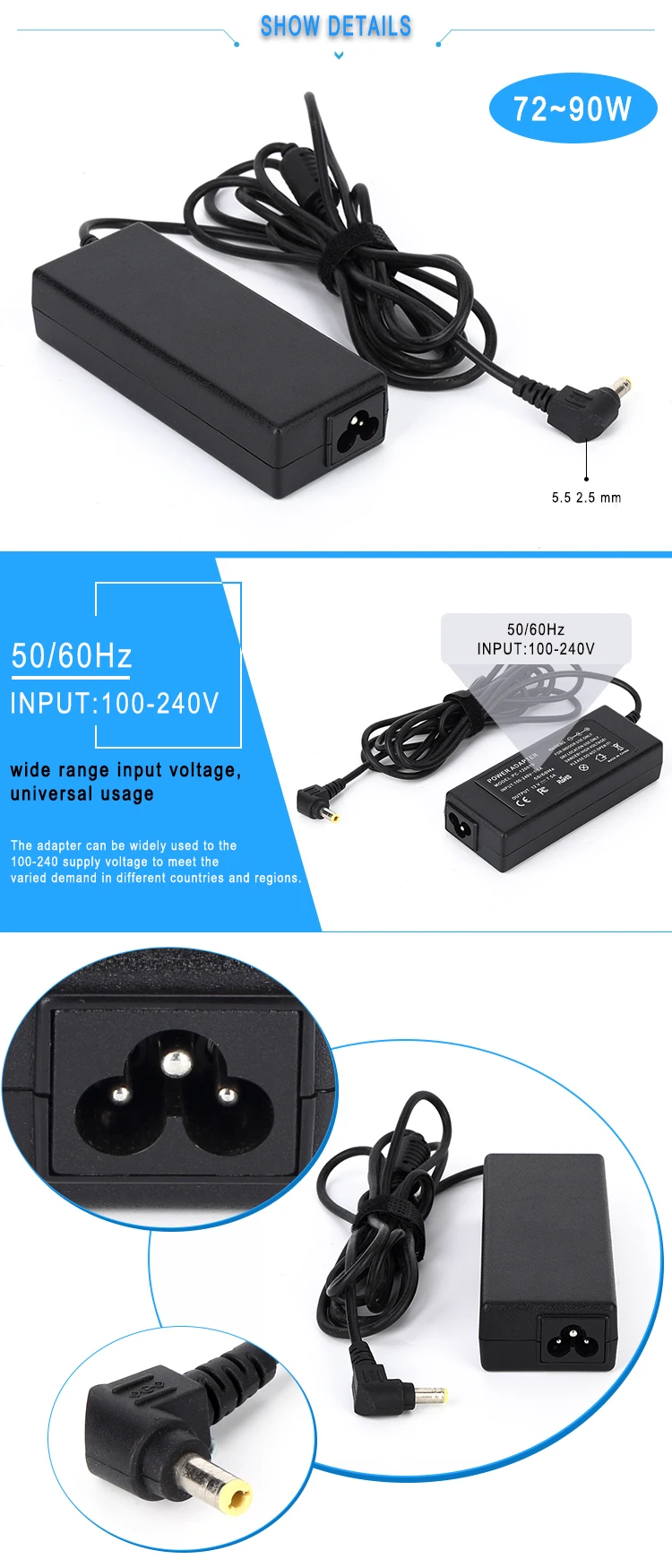

Product Image:







Packaging & Shipping

1. Neutral White & Brow Box; OEM no less than QTY 1K

2. Delivery Time: 3-5 working days for Sample & MOQ; 7-15 days for Mass production.


Company Information
Shenzhen Pengchu Industry Co., Ltd. is founded in year 2004, which focus on Power Supply for over 11 years. The range of Power supply we can provide is from 5W to 500W, widely used in home appliances ( LED lights, LCD monitor, Audio power Amplifier, 3D printer , CCTV monitor , Game machine , Laptops , Tablet pc , Communication products) and other industrial products.

Products are passed strict production process and quality inspection, Stable performance and long service life, high quality and competitive price, 100% aging test before shipping.  CE, FCC, ROHS, C-TICK, SAA, CB, PSE, KC, Medical, 17P are approved.


OEM and ODM are welcome. Let “PENGCHU” power supply be your most trusted partner.


FAQ

1. Q: What is your minimum order quantity?

     A: The MOQ is 1000 PCS.



2. Q: How does your factory do regarding quality control?

     A:  Quality is priority. Our power adapters are real power and high efficiency. We do 100% full load

           testing before shipping


3. Q: What is your warranty? And if I got wrong ones, how will you do with it ?

     A: Our warranty is 2 years. If having wrong ones which can't work, pls show us pictures, and we will                     replace the relative spare parts or a new one accordingly . If you wanna to refund, it can be

          discussed.



4. Q: What are the shipping ways you can offer?

     A: We can delivery the goods by air/sea/express according to custom ers' requirements.



5. Q: What payment terms can be acceptable?

     A: All payment way you prefer, like T/T, PayPal, Western Union.



6. Q: How about your delivery time?

     A: Bulk quantity within 7-9 working days normally.



7. Q: Do you provide samples of this product?

     A: Yes, we can provide sample or trial order for test.



8. Q: Do you make OEM?

     A: Yes,we can provide all kinds of OEM packing and labels as customers' request.
