single output US plug 12v 1a dc adapter 12w dc power adapter

FOB Reference Price:Get Latest Price
US $1.8-3.5 / Pieces | 1000 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
pengchu
Model Number:
PC-1200010
Output Type:
DC, Single
Connection:
Plug In
Input:
AC 100-240v 50-60hz
Output:
12v 1a 12w
Color:
Black
Protection:
OVP OCP OTP SCP
Warranty:
2 Years
Certification:
CE FCC ROHS ETL VI
Type:
Desk
Usage:
LED Light
DC connector:
5.5*2.5/5.5*2.1mm
Supply Ability
Supply Ability:
150000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Brown Paper Box
Port
Shenzhen

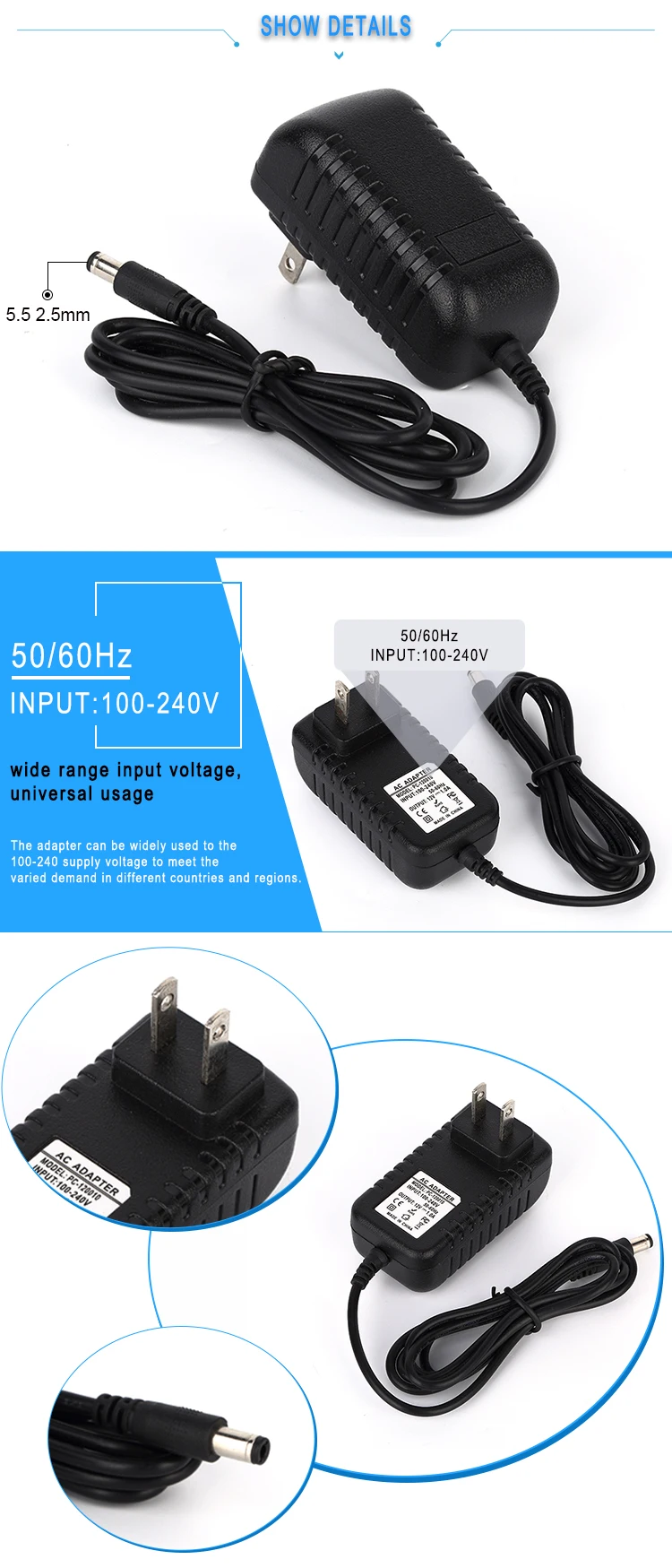

single output us plug 12v 1a dc adapter 12w dc power adapter

Features:

(1)High efficiency, High reliability, Long life time

(2)Efficiency: 88% min

(3)Approved CE RHOS FCC  certification

(4)Warranty: 2 years

(5)Protection: Over current protection, Over voltage protection, Short  circuit  protection; Over temperature protection.

(6) Real power, high reliablity, long life
     IEC320-C14, IEC320-C6 AC inlet optional
     OEM/ODM welcome (special voltage & dc connector & logo & package).



Product Description
single output us plug 12v 1a dc adapter 12w dc power adapter
Part. No. PC-120010
AC Input100~240V AC 50/60Hz  Max:90~264V AC 47/63Hz
DC Voltage 12V
Rate Current 1A
Current Range 0~1A
Rate Power 12W
Rippe & Noise <120mV
Voltage Tolerance±5%
Line Regulation±1%
Load Regulation±5%
Efficiency>88%
Short Circuit Protection

Shall be protected when any output operation in circuit short condition, and shall be auto restart when the fault condition is removed.

Over Current Protection130%~150%
Over Voltage Protection115%~135%
Operating Temperature-10℃~50℃(±10℃)
Relative Humidity20%~90% RH
Storage Temperature-40℃~80℃(±10℃)
Dielectric Withstand Voltage(HI-POT)100% of line products of this adapter shall be applied 3000V AC or 4242V DC for a minimum of 1 minute between AC input terminals and output terminals
Cut-off current is specified as 10mA
Insulation-resistance100M ohms
DC Connector5.5*2.1mm or 5.5*2.5mm(Customized available)
DC Cable1.2M, 1.5M, 1.8M(Customized available)
AC CableUSA/UK/EU/AU/India Plugs(Customized available)
USA PLUG.jpg
AC cables

 AC power cord

Certifications

 Certifications

Company Information



Shenzhen Pengchu Industry Co., Ltd. was approved to establish by Shenzhen Administration for Industry and Commerce in 2004 and has passed ISO9001 : 2000 international quality system certification.
    All the products are 100% aging test. With CE, FCC, RoHS, CB, ETL, SAA, C-TICK, PSE ceritifcates. OEM and ODM orders are always welcome.
    Shenzhen Pengchu Industry Co., Ltd is always here to help you !



Packaging&Shipping

 Packing&Shipping

FAQ

Q:  How many Voltage you can supply?

  A:  5V 6V 9V 10V 12V 16V 28V 29V 24V 36V 48V.



Q:  How many current you can supply?
  A:  0.5A 1A 1.5A 2A 2.5A 3A 3.5A 4A 5A 10A 15A 20A 30A 40A.



Q:  Which payment do you accept?
  A:  You could use PAYPAL,ALIPAY,Bank transfer T/T etc. Or we accept alibaba trade assurance with Master card/Visa/T/T/E-checking.



Q:  What's your warranty?
  A:  Two years warranty.



Q:  What is your samples lead time or goods delivery time?
  A:  Samples time about 3 working days,goods time about 12 working days.



Q:  Can we print our logo?
  A:  We can print your logo on both power adapter and package.

Our Services
  • Over 14 years exporting experience, OEM/ODM service is welcome
  • Competitive wholesale price
  • AC Input 100-240V, world wide use voltage
  • Trade term: EXW, FOB, CIF
  • Port: Shenzhen, Guangzhou
  • Sample availability: Yes
  • Supply capability: 150000 pcs/day
  • Shipment: ocean or air transportation, international express
  • Normal lead time:Within 3 days for sample order;15 days for production order
  • Packing: carton box
  • Considerate Service: Reply in Time,Delivery on Time
  • Two year warranty
