Desktop ac dc 5v 30a switching mode power supply

FOB Reference Price:Get Latest Price
US $57.15-59.15 / Pieces | 100 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Pengchu
Model Number:
PC-050300
Output Power:
101 - 200W
Output Type:
Single
Input Voltage:
100-240V
Output Voltage:
5V
Output Frequency:
50/60Hz
Output Current:
30A
Product name:
ac dc 5v 30a switching mode power supply
Rated voltage:
5V
Rated current:
30A
Rated power:
150W
Certification:
CE ROHS FCC CB
Protection:
OVP OCP OTP SCP
AC cable:
1.2m dc power cord
DC cable:
1.2m dc power cord
Warranty:
2 years
Package:
Brown box
Supply Ability
Supply Ability:
150000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Product name: Desktop ac dc 5v 30a switching mode power supply
Package:Brown box
Port
Shenzhen

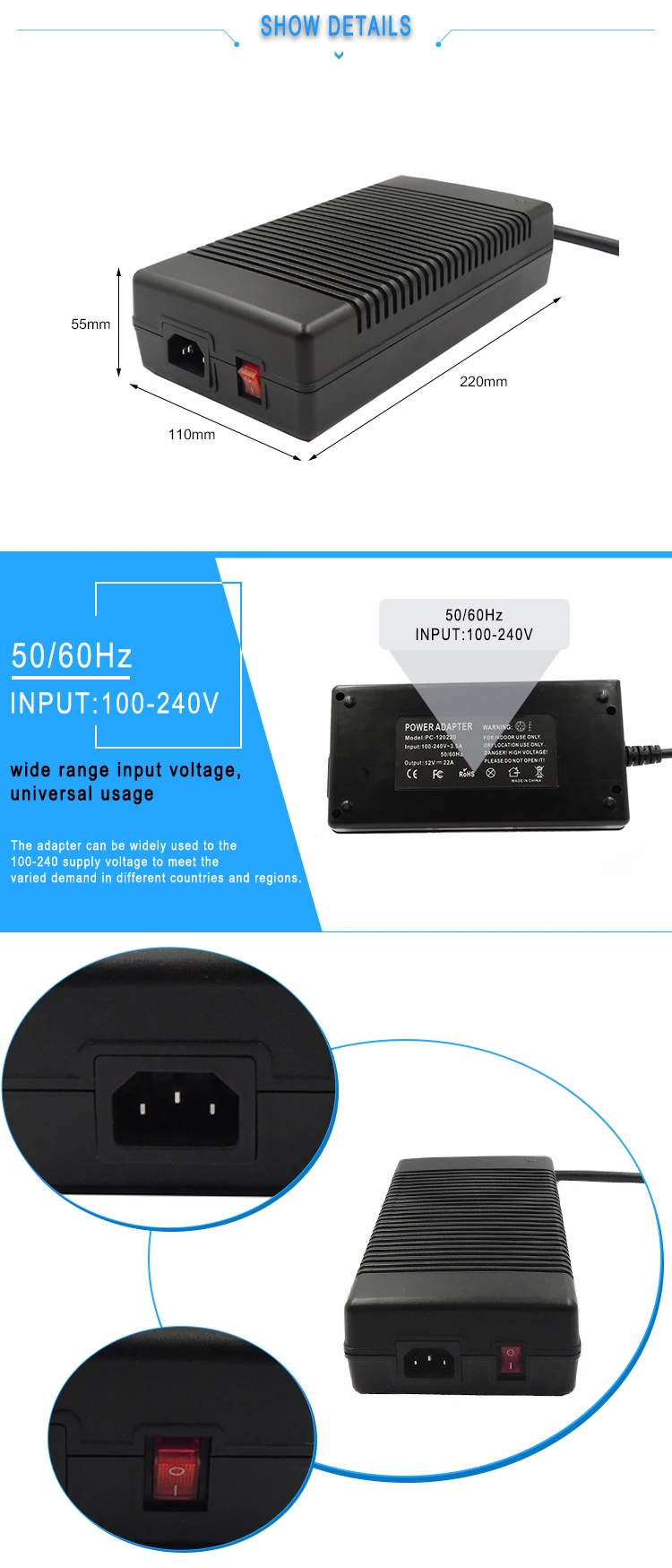

Desktop ac dc 5v 30a switching mode power supply

Features:

  • Universal ac input/Full range( up to 264V)
  • Comliance RoHS
  • With PFC function
  • Over voltage/over current/over temperature/short circuit protections
  • With switch on the adapters, you can switch on/off the power easily by the switch, no need to plug/unplug the ac power cord
Product Description
Desktop ac dc 5v 30a switching mode power supply
Part NO.  PC-050300
DC Voltage  5V
Rate Current  30A
Current range  0~30A
Rate power  150W
Voltage tolerance  ±5%
Line Regulation  ±1%
Load Regulation  ±5%
Ripple & noise  <120mvp-p
AC Input  100~240Vac 50/60Hz max: 90~264Vac 47/63Hz
Efficiency  >88%
Short Circuit Protection

 Shall be protected when any output operation in circuit short condition,and shall  be auto restart when the fault condition is  removed.

Over Current Protection 130%-150%
Over Voltage Protection 115%-135%
Operating Temperature -10-50℃ (±10℃)
Relative Humidity 20%-90% RH
Storage Temperature -40-80℃ (±10℃)
DC Connector 4 PIN connector (Customized Available)
DC Cable 0.8m/0.9m/1.0m etc.

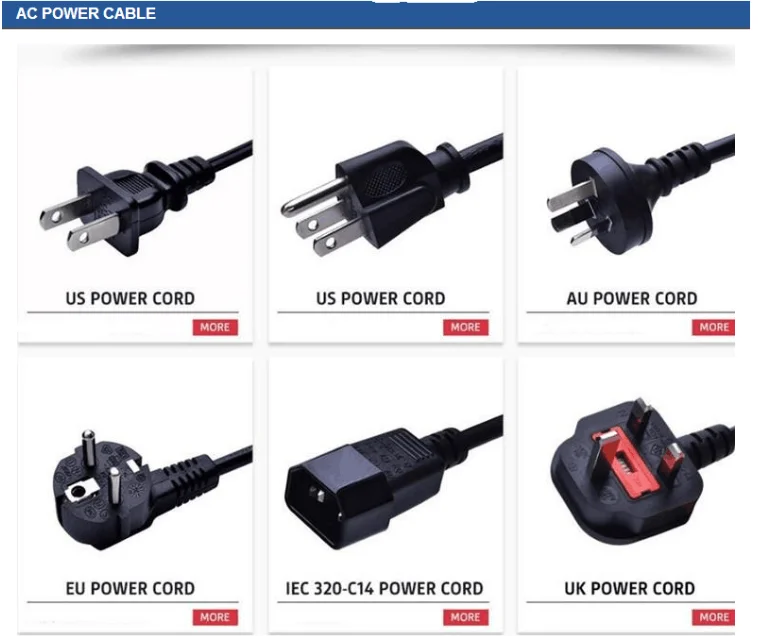

AC Cable 1.2m AC power cord with USA/UK/EU/AU/India plugs options

PFC power supply adapter.jpg

AC power cord.png
