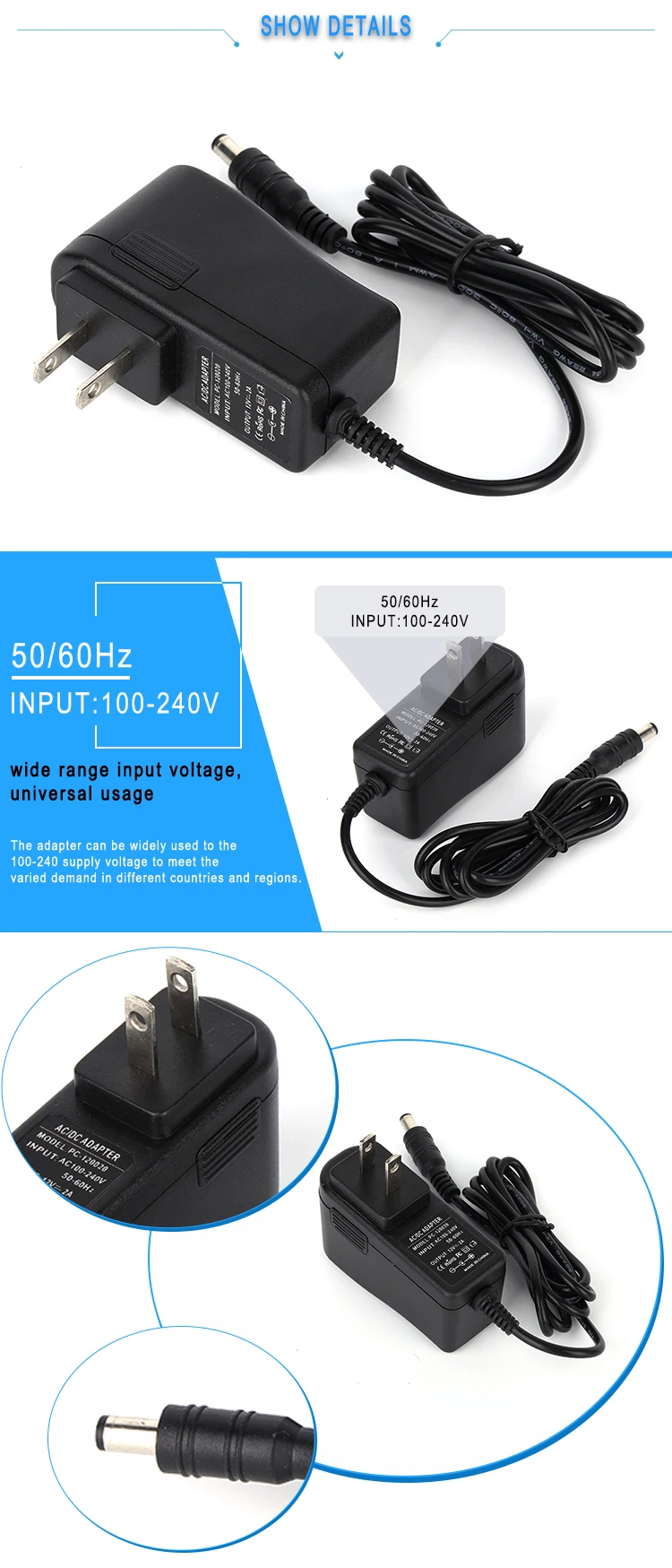

US plug ac dc 9v 1.5a power supply

FOB Reference Price:Get Latest Price
US $2.8-3.8 / Pieces | 1000 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
OEM
Model Number:
9V 1.5A
Output Power:
1 - 50W
Output Type:
Single
Input Voltage:
110V-240V
Output Voltage:
13.5W
Output Frequency:
50-60HZ
Output Current:
1.5A
Certification::
CE,Rohs,FCC
Warranty:
1 year
The adapter size:
76*28*43mm
The adapter weight:
106g/pcs
Input Rated Voltage:
86Vac~264Vac
Input Frequency Range:
47Hz~63Hz
DC Output Current:
1500mA (option)
DC Output Power:
9w-14w (14w max)
DC connector:
5.5*2.1*11mm (optional)
Input Current:
less than 0.5A
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
brown box
Port
shenzhen
Lead Time :
within 7-9 business days

US plug ac dc 9v 1.5a power supply

Product Description



Oupt power range12v1a,12v0.75a.9v1a,9v1.5a,5v2a, (also have those models for selection)
The adapter size76*28*43mm
The adapter weight106g/pcs
Input Rated Voltage 86Vac~264Vac
Input Frequency Range47Hz~63Hz
Input Currentless than 0.5A
Input Inrush Currentless than 50A
Efficiency    80%(MIN)at Rated Voltage
DC Output Voltage9V± 5%  (option)
DC Output Current 1500mA    (option)
DC Output Power9w-14w   (14w max)
Leakage Currentless than 5mA
Standby powerless than 0.5w
DC connector5.5*2.1*11mm (optional)
DC cable1.5m 2464UL 22AWG cable (optional)
Ripple and Noiseless than 120Mv at full road with 20MHz bandwidth
Turn On Delay Time less than 3S  (AC:110V and full load)
CertificatesCE FCC ROHS
Dielectric Voltage A IEC320 three pin input---output(FG)3000Vac one minute
Safety protection output voltage protection (150%-180% rated output current)
output current protection (150%-180% rated output current)
short current protection
Operating Temperature 0°C - +55°C
Storage Temperature  -20°C - +85°C
CertificatesCE FCC ROHS
Safety Standard EN60950-1 UL60950-1  ESD (EN61000 3-3)
CAS (60950 ITE/TE)  FCC Part 15 subpart B Class B
AN/NZS CISPR 22:2006
